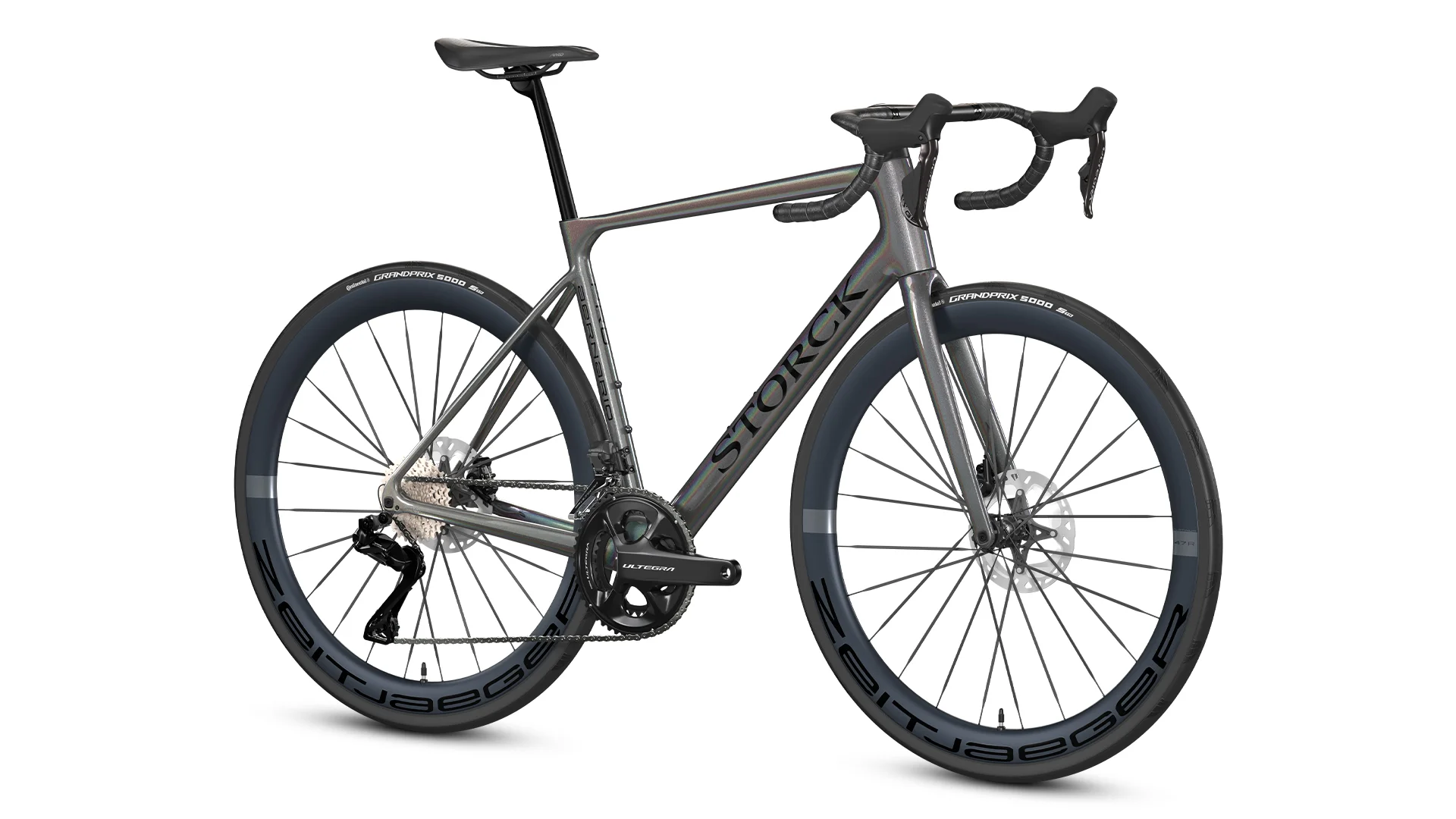

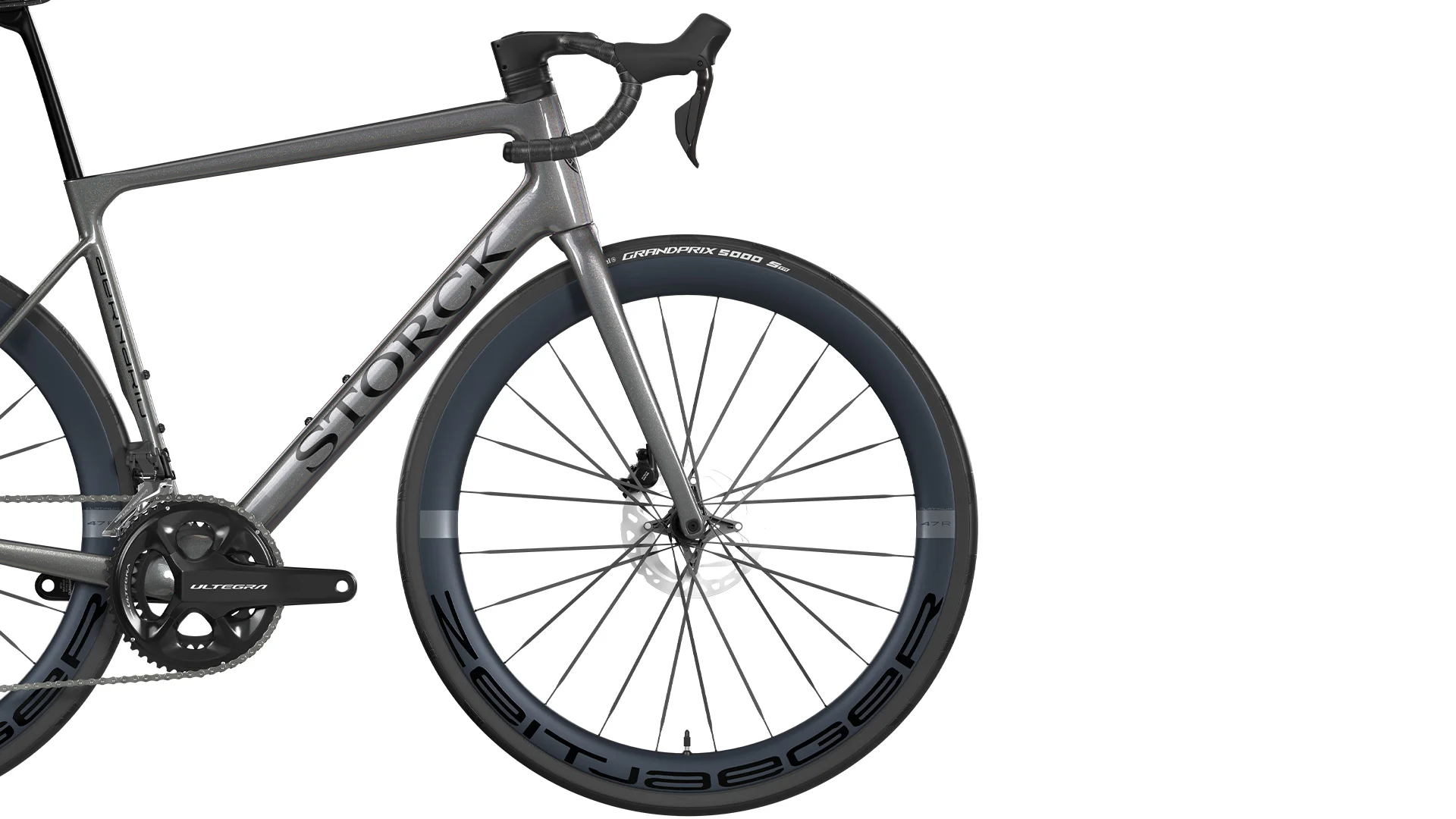

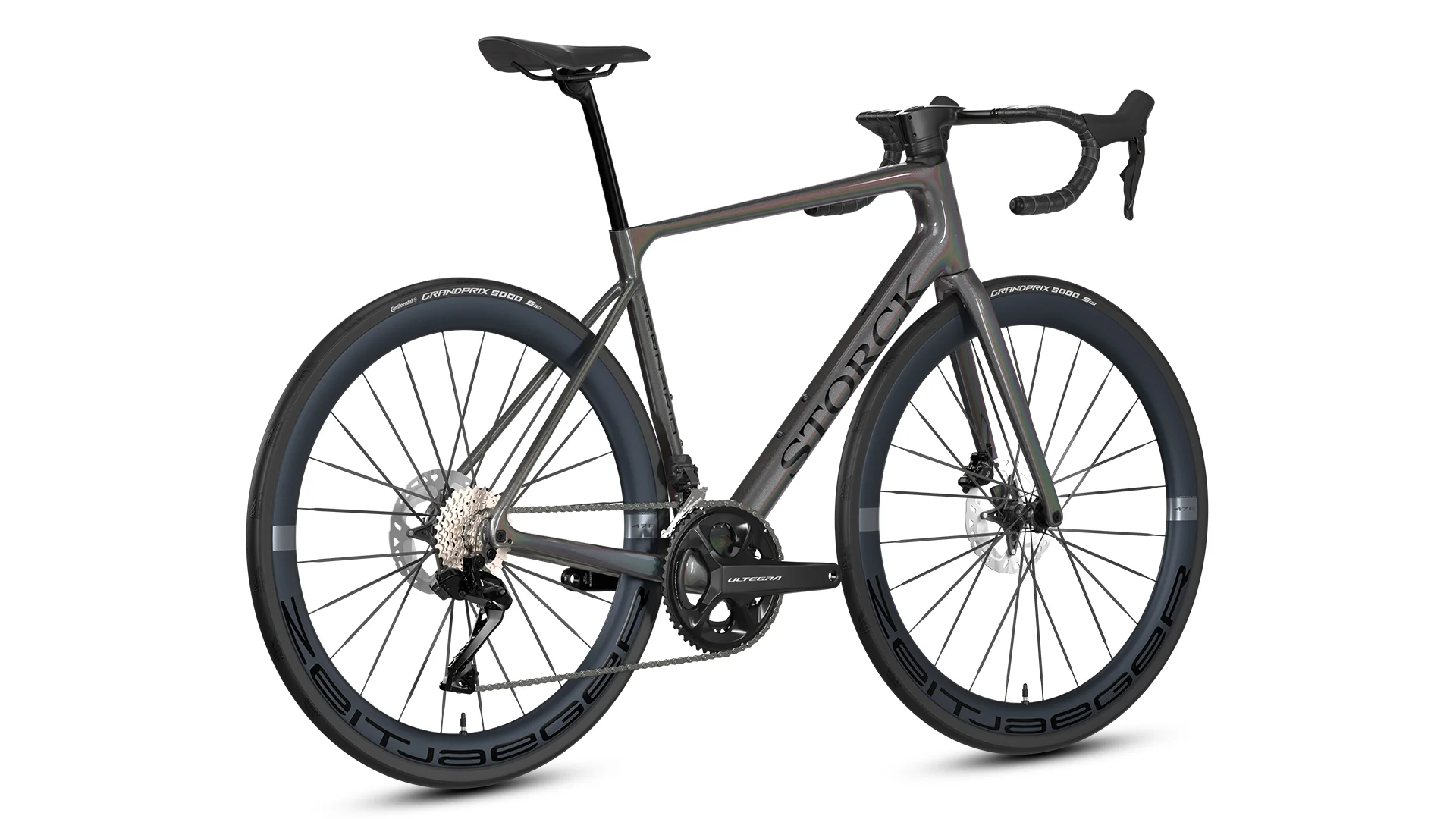

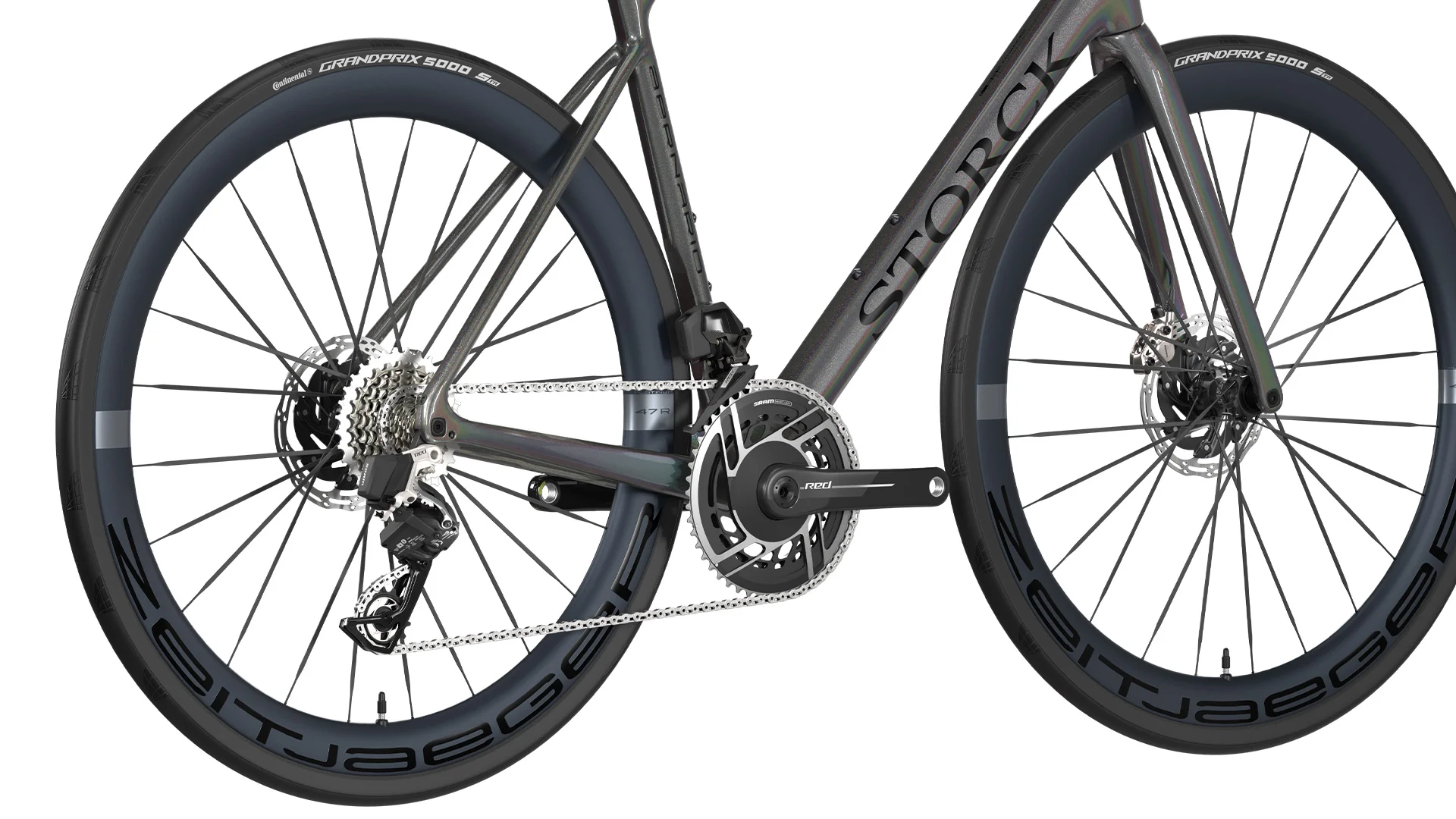

Aernario.3 Pro
Our King of the Mountain

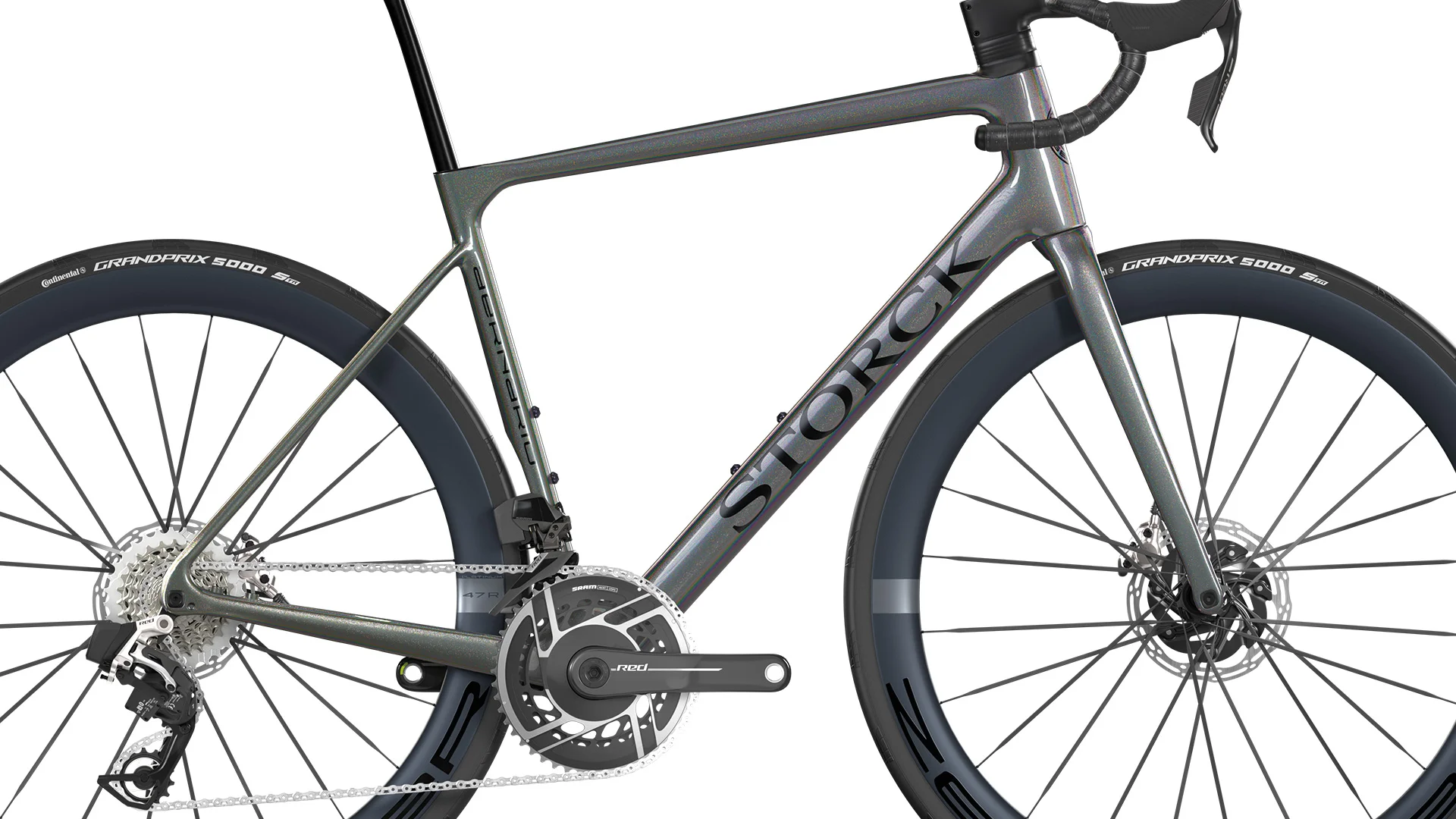

The Aernario is made for challenging routes with crisp climbs and fast descents. With a low weight from 6.7 kg, the Aernario.3 is light-footed, sporty and agile and is characterised by high comfort thanks to the carbon seatpost and rear triangle.
A Unique Look

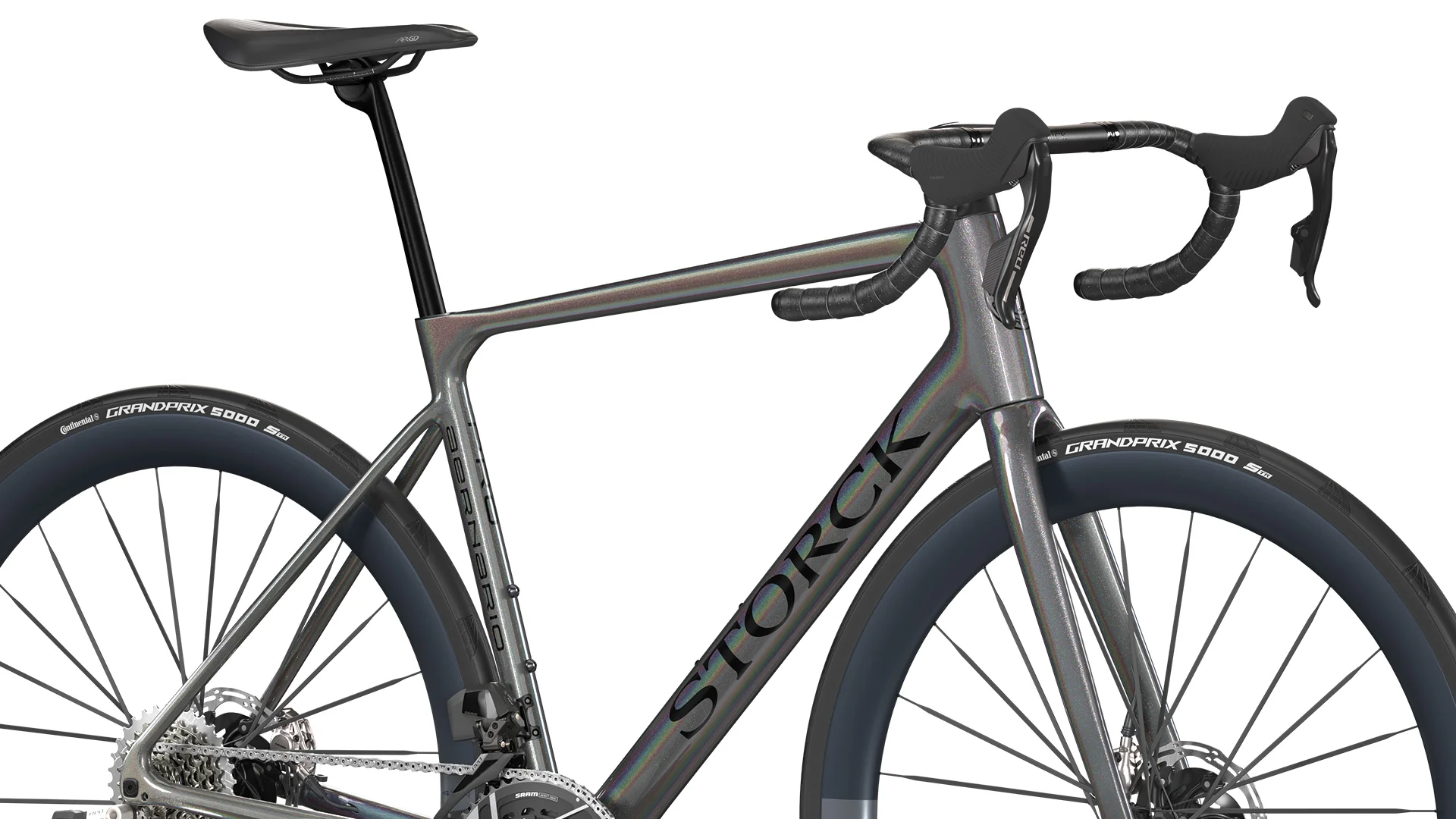

The Aernario.3 Pro captivates with its truly distinctive color. From a distance and in the dark, the Pro appears to have a glossy silver finish, but upon closer inspection and when exposed to direct light, it shimmers with the beautiful, iridescent colors of the rainbow. Compliments from your fellow riders are guaranteed.
System Integration

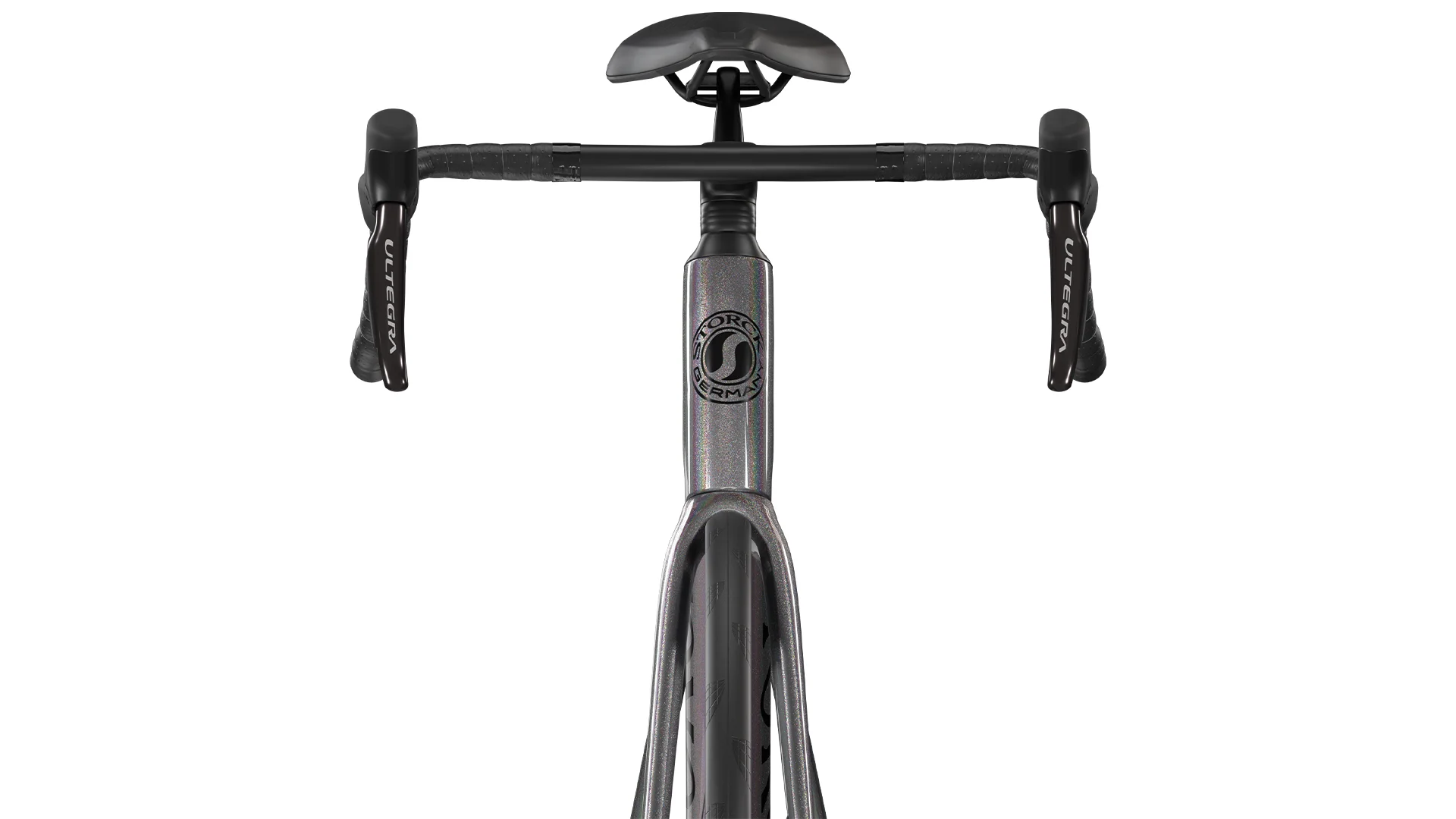

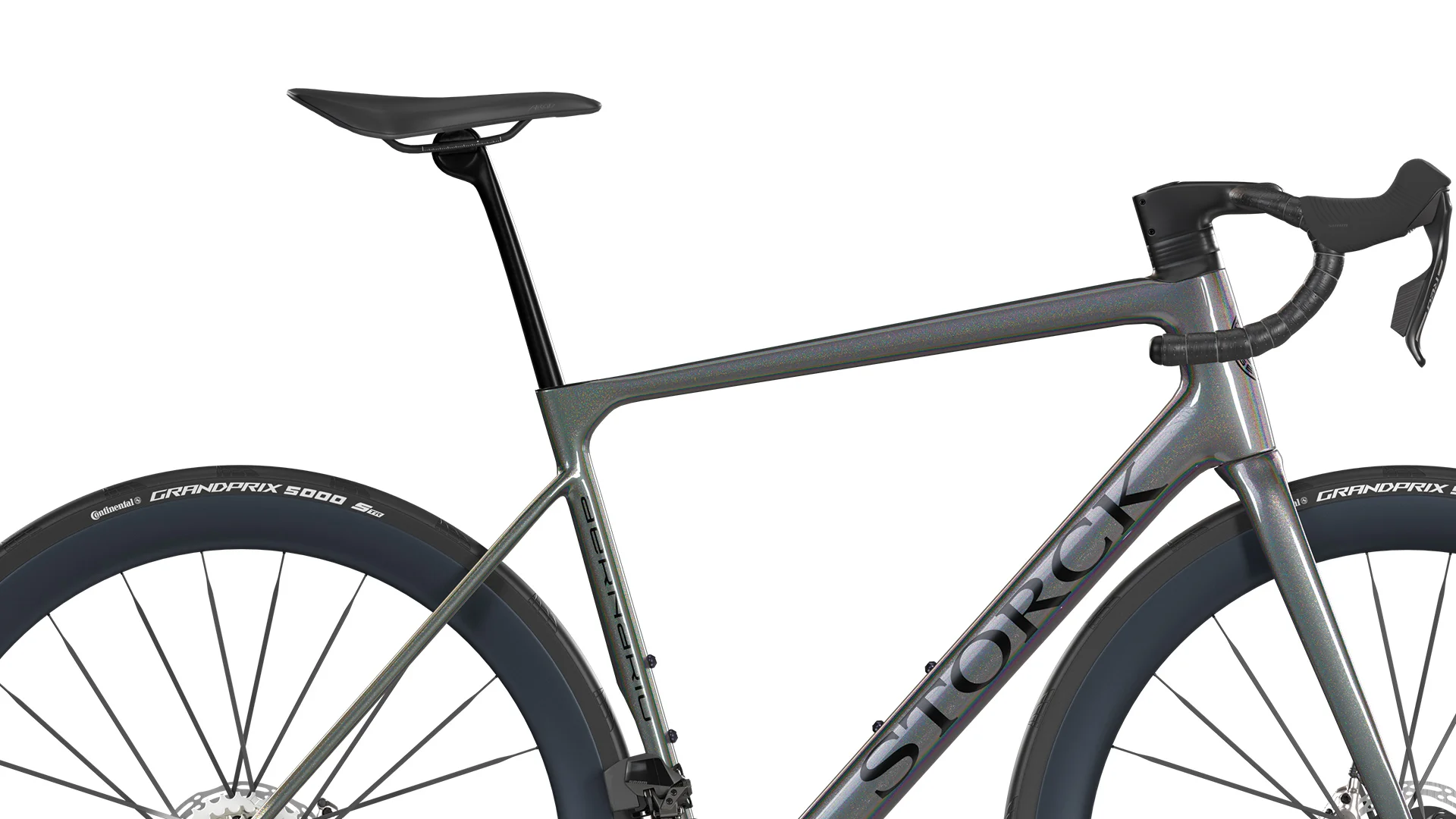

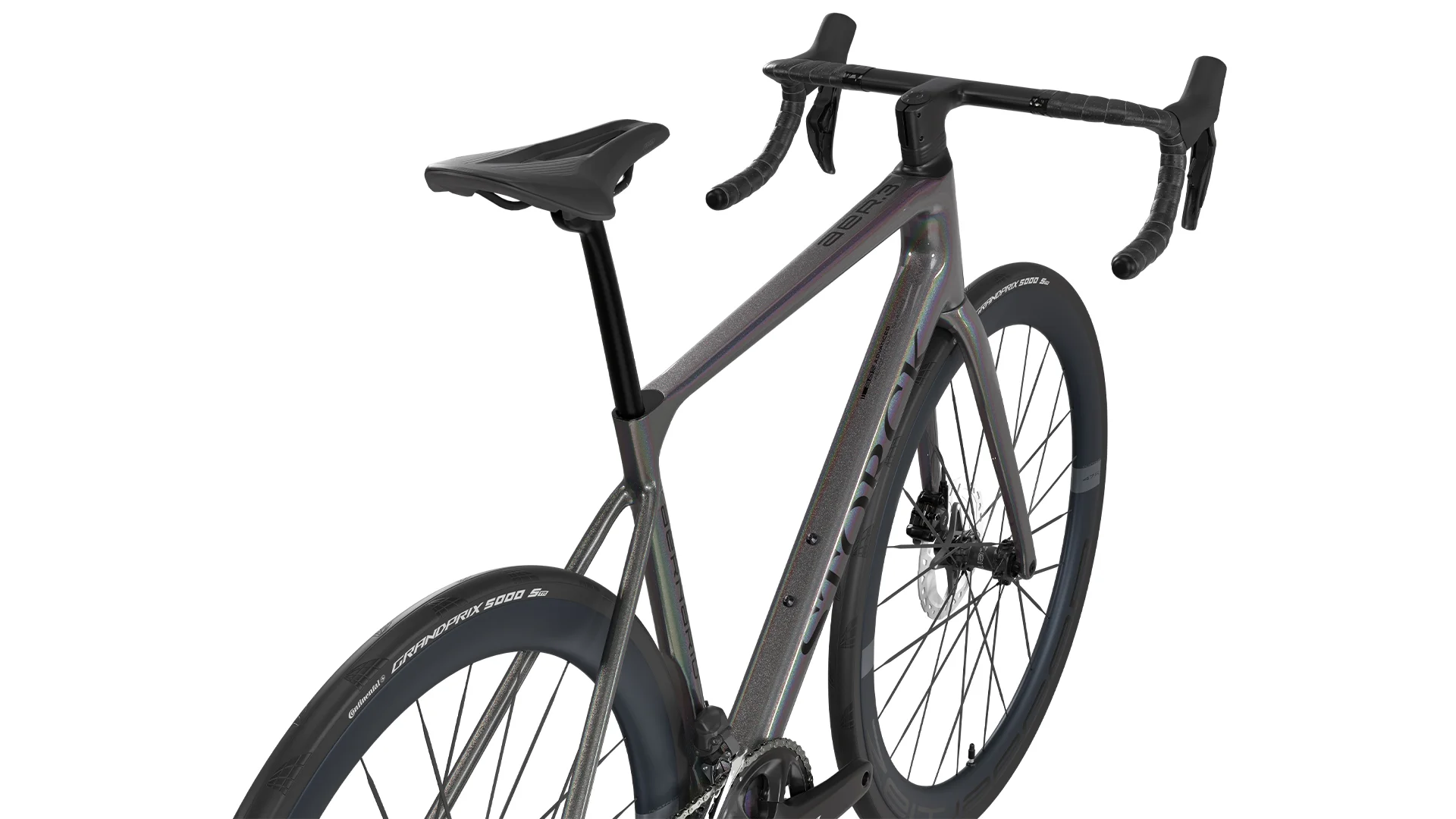

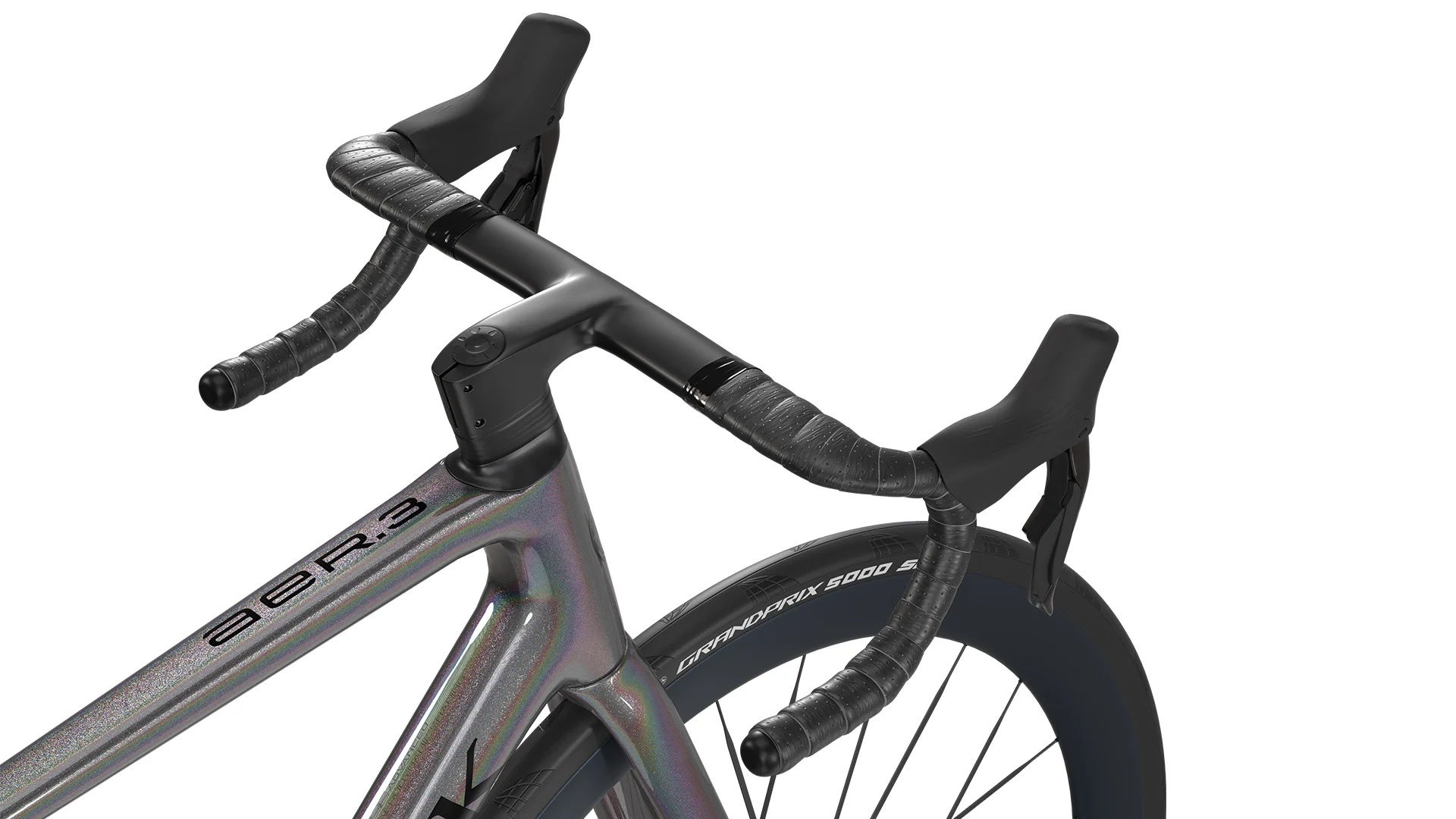

Thanks to the integrated routing of all cables throughout the entire frame, the Aernario achieves a clean and elegant look. All shift and brake cables run internally through the frame and the handlebar-stem assembly. This creates a tidy cockpit and a stylish bike. We have also developed an integrated seatpost that blends seamlessly into the design.
Markus Storck’s Favorite Bike
“Ever since we added the Aernario to our lineup, it’s always been my favorite to ride. Of course, I love the speed of the Aerfast and the versatility of the Fascenario, but the Aernario is simply the best fit for me, my riding style, and the hilly Taunus region where I mostly ride. Lightweight construction has always been important to me, and I’ve always looked for ways to reduce the weight of my own bike. Achieving the goal of an ultralight bike with disc brakes and sleek system integration is a new milestone for us! I’ll be riding the Aernario.3 myself, because it’s my absolute dream bike. This is exactly how my own road bike should look and be equipped.”
Your Aernario.3 Pro
Frame geometry
| Frame Size | ST (mm) | TT (mm) | TT EFF (mm) | HT (mm) | CS (mm) | Stack (mm) | Reach (mm) | ST° (degree) | HT° (degree) | Recommended body height (cm) | Crank length (cm) | Handlebar width/stem length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 475 | - | 545 | 132 | 407 | 543,1 | 387,2 | 73,8 | 72,5 | 165 - 174 | 170 | 380/90 |
| M | 500 | - | 566 | 158 | 407 | 571,2 | 396,8 | 73,5 | 73,5 | 174 - 182 | 172,5 | 400/100 |
| L | 525 | - | 582 | 182 | 407 | 594,2 | 406 | 73,5 | 73,5 | 180 - 189 | 172,5 | 420/100 |
| XL | 550 | - | 599 | 206 | 407 | 617,2 | 416,2 | 73,5 | 73,5 | 187 - 195 | 175 | 420/110 |
| XXL | 580 | - | 610 | 229 | 407 | 639,2 | 420,7 | 73,5 | 73,5 | 193 - 203 | 175 | 440/120 |
- ST: seat tube length • Sitzrohr (mm)
- TT: top tube length • Oberrohr (mm)
- TT EFF: effective top tube length (mm)
- HT: head tube • Steuerrohr (mm)
- CS: chain stay length • Kettenstrebe (mm)
- F: fork rake (mm)
- Stack: vertical length center bottom bracket to center top head tube (mm)
- Reach: horizontal length center bottom bracket to center top head tube (mm)
- ST°: seat tube angle (degree)
- HT°: head tube angle (degree)
| Brakes: | Shimano Ultegra 160/160 Flatmount |
|---|---|
| Cassette: | Shimano Ultegra R8150 12-speed, 11-34 |
| Chain: | CN-M8100 HG 12-speed 126G Quick-Link |

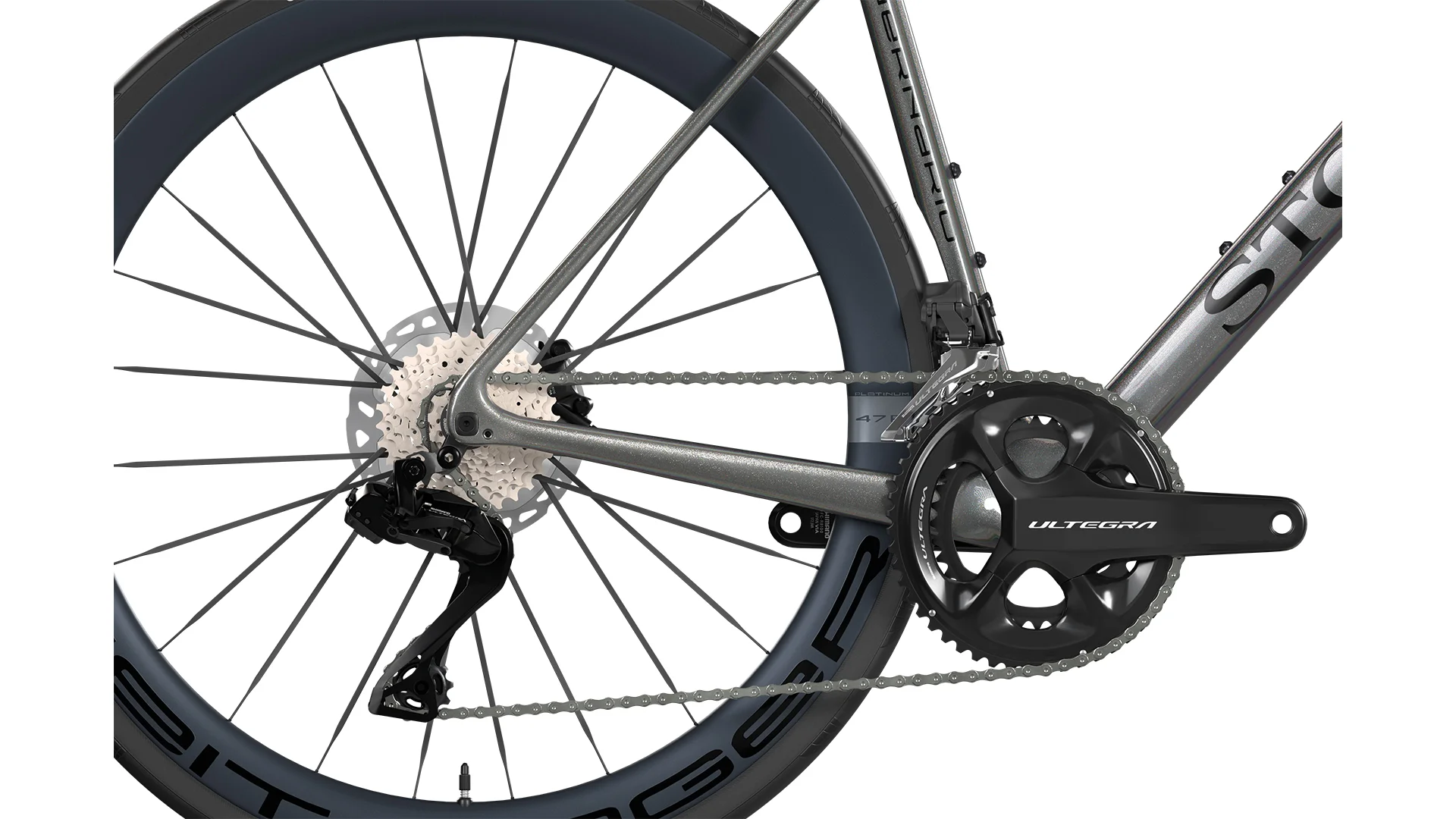

| Crank / chainring: | Shimano Ultegra R8100 50-34 |
| Front derailleur: | Shimano Ultegra Di2 |
| Groupset: | Shimano Ultegra Di2 |

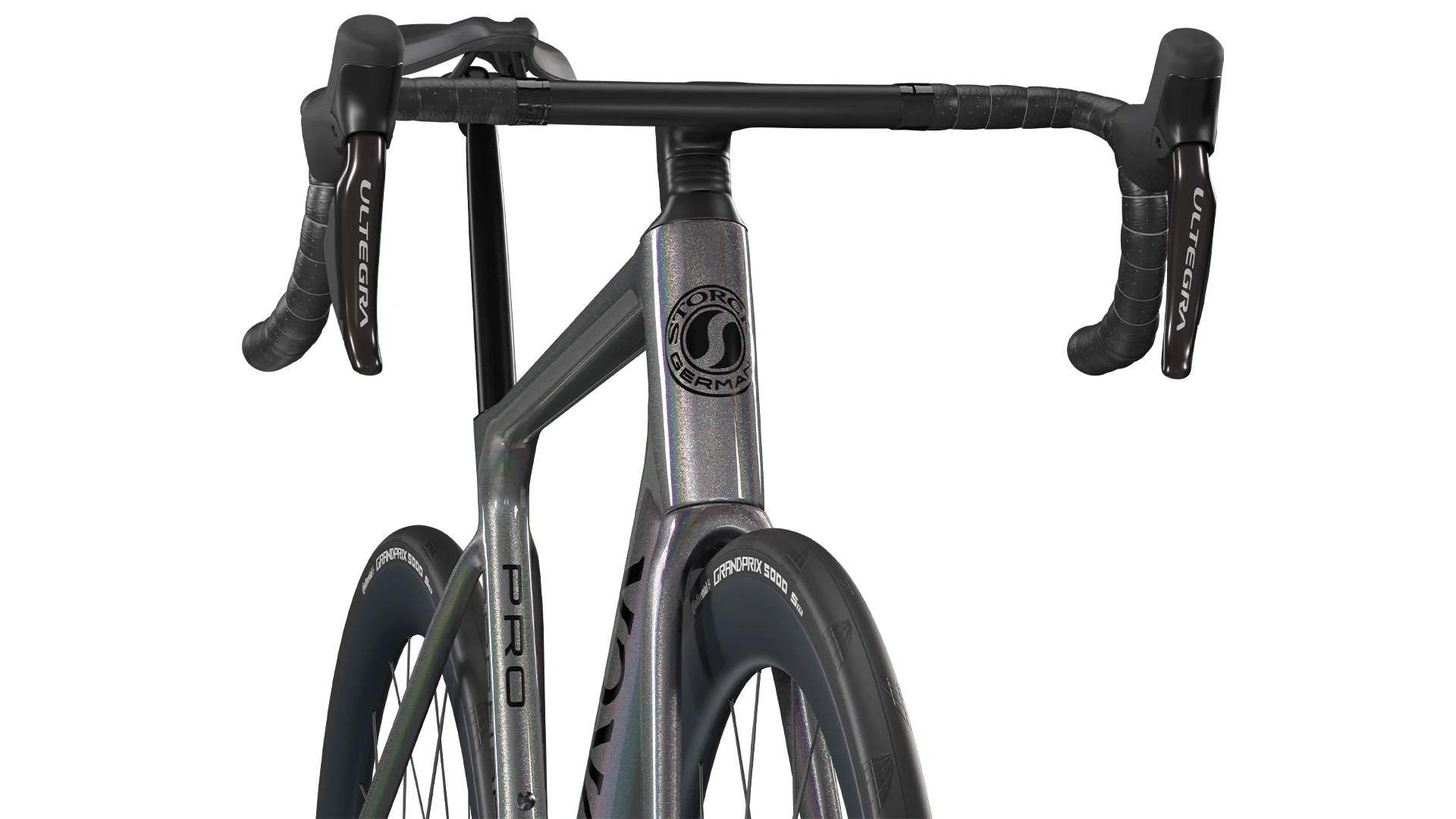

| Handlebar/ stem unit: | RBSU Aernario.3 |
| Handlebar tape: | Storck microfibre black |
| Inner bearing: | Pressfit™ diameter 41x86.5mm |
| Material: | Carbon Fibre Reinforced (CFR)/Unidirectional (UD) |
| Rear derailleur: | Shimano Ultegra Di2 R8150 |
| Saddle: | Fizik Vento Argo R5 |
| Seat post: | Storck Aernario.3 Carbon |
| Tax rate: | Aernario.3/Aerfast3 |
| Tyres: | Continental Grand Prix 5000S TR black/black 28mm |
| Colour: | Psychedelic Flip |
| Frame variant: | Pro |
| Groupset: | Shimano Ultegra Di2 2x12 |
| Size: | S |
| Wheelset: | Storck Zeitjaeger Pro 37 R |
